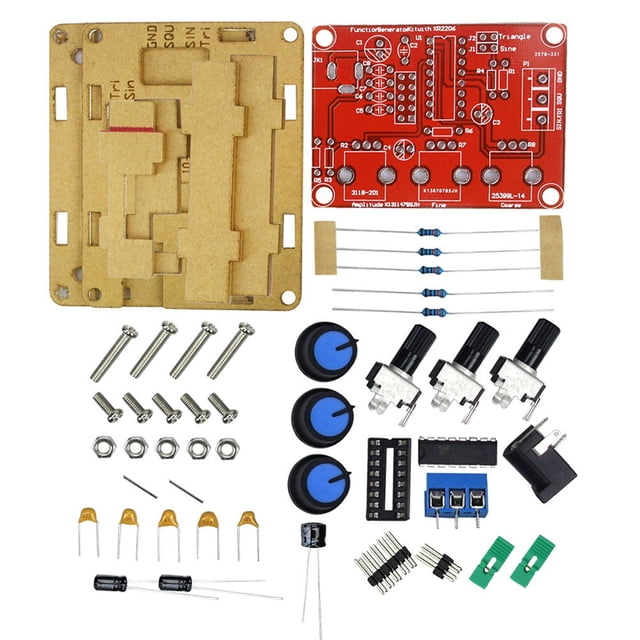

1 Pack for XR2206 Signal Generator Sine/Triangle/Square 1Hz-1Mhz Output DIY Kit

[TRIANGLE & SQUARE WAVE OUTPUTS] Produce Sine, Triangle, and Square waves within a frequency range of 1Hz to 1MHz suitable for multiple applications. [AMPLITUDE CUSTOMIZATION] The adjustable output amplitude from 0 to 3V at a 9V DC input allows precise tuning for various projects. [HIGH FIDELITY WAVEFORMS] low distortion rates of less than 1% at frequencies up to 1kHz, vital for accurate waveform reproduction in testing scenarios. [EFFICIENT DIGITAL SIGNALS] Fast switching capabilities with square wave rise times below 50ns enhance performance in digital environments. [ENGAGING DIY PROJECT] This complete DIY kit offers an excellent opportunity for hands-on experience in electronics as you assemble your own signal generator.

Brand

Assembled Product Dimensions (L x W x H)

Assembled Product Weight

Material

Features:*Versatile Waveform Generation: The for XR2206 Signal Generator allows you to produce three different waveforms—Sine, Triangle, and Square—covering a frequency range from 1Hz to 1MHz, making it for various applications in electronics and audio testing. &nbsp;*Adjustable Output Amplitude: With the sine and triangle wave outputs adjustable between 0 to 3V at a 9V DC input, this kit gives you the flexibility to tailor the output to suit your specific project requirements, optimal performance. &nbsp;*Precision Waveform Characteristics: The signal generator boasts low distortion levels of less than 1% for sine waves at 1kHz, high fidelity in waveform reproduction, which is crucial for accurate signal processing and analysis. &nbsp;*Fast Switching Times: The square wave output features rise and fall times of less than 50ns and 30ns respectively, providing transitions that are essential for high-speed digital applications, enhancing the reliability of your signals. &nbsp;*Comprehensive DIY Kit: This product comes as a complete kit requiring assembly, allowing users to engage in hands-on learning and gain practical experience in electronics while constructing their own signal generator from scratch.Voltage Supply:9-12VDC InputWaveforms: Square, Sine & TriangleImpedance: 600 Ohm + 10%Frequency: 1Hz - 1MHzSINE WAVEAmplitude: 0 - 3V at 9V DC inputDistortion: Less than 1% (at 1kHz)Flatness: +0.05dB 1Hz - 100kHzSQUARE WAVEAmplitude: 8V (no load) at 9V DC inputRise Time: Less than 50ns (at 1kHz)Fall Time: Less than 30ns (at 1kHz)Symmetry: Less than 5% (at 1kHz)TRIANGLE WAVEAmplitude:0 - 3V at 9VDC inputLinearity: Less than 1% (up to 100kHz) 10mA*The welding installation considerations, follow these steps:&nbsp;1. The components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, etc.&nbsp;2.Welding for IC socket, terminal blocks, finally power socket, adjustable potentiometer.&nbsp;3.The back with a diagonal cutting pliers to cut short the pins as far as possible&nbsp;&nbsp;&nbsp;*Debugging steps:&nbsp;1After completion of welding on for IC, for XR2206, pay attention to the direction of for IC, insert the might damage the chip!&nbsp;2. check the for IC whether against, such as anti please timely correction.&nbsp;3. Insert the power supply, power supply for 5.5 * 2.1 port, inside outside is negative polarity. For 9-12 v power supply voltage. The waveform may not be stable for more than 12 v&nbsp;&nbsp;&nbsp;*Using the step&nbsp;1. J1 cap in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert 1 of)&nbsp;2. J2 cap in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert 1 of)&nbsp;3. SQU blue terminals output pulse&nbsp;4. AMP : Sine wave, triangle wave amplitude adjustment&nbsp;5. FINE : Frequency fine adjustment&nbsp;6. Coarse : Frequency of coarse adjustmentSpecifications:Part Name:Signal Generator DIY KitMaterial:ABSSize:12*8*2cmColor:RedPackage Content:1*Signal Generator DIY KitNote:1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.2. Please allow slight manual measurement deviation for the data.

Manufacturer Part Number

Universal Product Code (UPC check)
