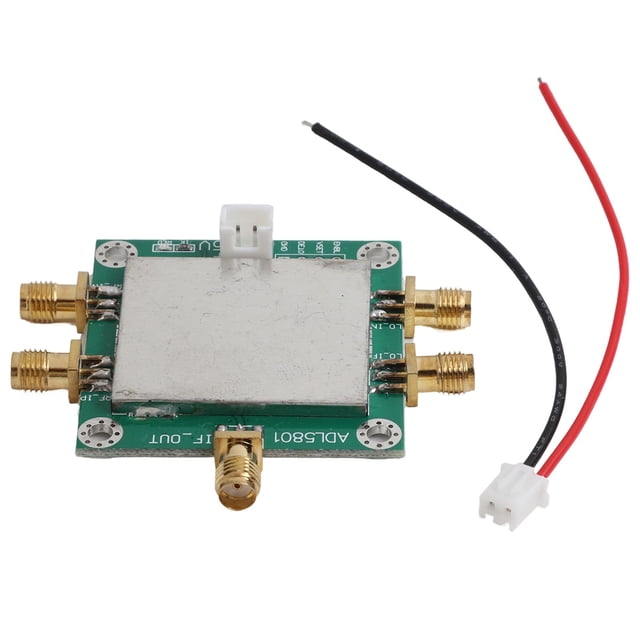

Adl5801 High Linearity Active Mixer Rf Mixer Double Balanced Mixer 10Mhz-6Ghz Mingyqi

<ul><li>[ADAPTIVE BIAS CONTROL] Tailor your setup with the innovative bias adjust feature that optimizes input linearity and SSB noise figure via a single control pin, offering flexibility in various operational environments.</li><li>[INTEGRATED POWER DETECTION] The optional input power detector enables the mixer to self-adjust under fluctuating input conditions, enhancing overall performance through adaptive bias control.</li><li>[LEAKAGE DESIGN] Designed to minimize leakage with typical performance better than 40 dBm between LO to RF and LO to IF paths, clean signal integrity during operation.</li></ul>

Brand

Assembled Product Weight

Material

Features:*High Linearity Performance: The ADL5801 utilizes a doubly balanced, active mixer core that enhances input performance and offers high dynamic range frequency conversion from 10 MHz to 6 GHz, making it for demanding applications.*Adaptive Bias Control: A unique bias adjust feature allows users to optimize input linearity, SSB noise figure, and DC current via a single control pin, versatility in various operational conditions.*Integrated Power Detection: An optional input power detector enables adaptive bias control, allowing the mixer to automatically adjust to varying input conditions for optimal performance.*Low Leakage Design: The balanced active mixer arrangement provides excellent LO-to-RF and LO-to-IF leakage, with typical performance better than -40 dBm, minimal signal degradation during operation.*Compact and Robust: Housed in a small 4 mm x 4 mm, 24-LFCSP package, the ADL5801 is designed to operate reliably over a wide temperature range of -40°C to +85°C, suitable for a variety of applications.*Applications: Cellular base station receivers; Radio link downconverters; Broadband block conversion; Instrumentation.Specifications:*Part Name:ADL5801 Active Frequency Mixer*Material:SiGe*Size:50*50*7mm*Color:Green*Broadband upconverter/downconverter: Power conversion gain: 1.8 dB&nbsp;*Broadband: RF, LO and IF ports&nbsp;*SSB noise figure (NF): 9.75 dB&nbsp;*Input: 28.5 dBm&nbsp;*Input P1dB: 13.3 dBm&nbsp;*Typical LO drive: 0 dBm&nbsp;*Single supply: 5 V, 130 mA&nbsp;*Adjustable bias for low power consumption: Exposed pad, 4 mm x 4 mm, 24- LFC&nbsp;*Exposed pad, 4mm x 4mm, 24- LFCSP package&nbsp;*RF: 10Mhz-6Ghz *IF: LF-600MHz&nbsp;*VCC=+5vdc *Balancer: TC4-1WG2&nbsp;*Positioning accuracy: 2m&nbsp;*Speed accuracy: 0.1m/s&nbsp;*Antenna type: for IPEX external antenna&nbsp;*Transmitting power: <-85dBmPackage Content:1*RF Mixer1*CableNote:1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.2. Please allow slight manual measurement deviation for the data.
