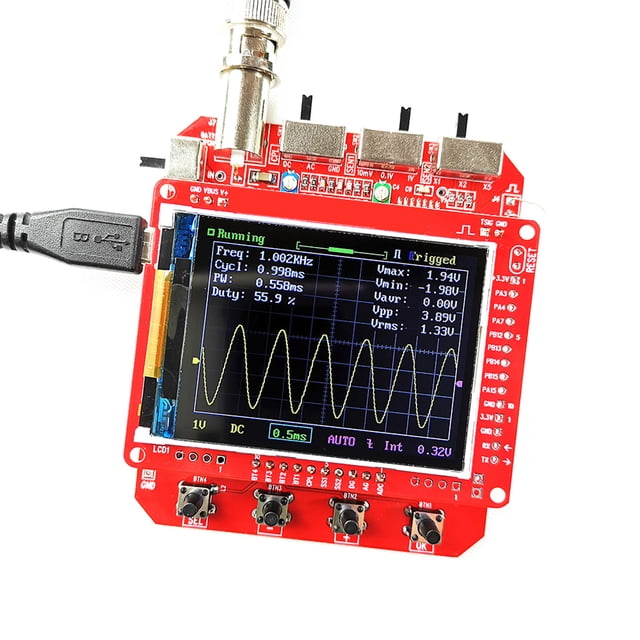

Amdohai Mini Digital Oscilloscope DIY Kit SMD Parts Pre-soldered Electronic Learning Set 1MSa/s 0-200KHz with Transparent Case

Brand

It has similar performance as the old version but come with significant improvements in power supply and mechanical structure. Its power supply was greatly simplified with much less component counts. It makes MCU and LCD stay in one PCB to avoid problematic pin-header connections that was used in the old version. This not only increases product reliability but also allows the main board to become a flexible general purpose controller. Its overall size is only 2/3 of the old version so it is much more suitable for hand-held operation.&nbsp;Features:2.4-inch color TFT LCD with 320*240 resolution displays parameters clearly.Make MCU and LCD stay in one PCB to avoid problematic pin-header connections.Overall size is only 2/3 of the old version so it is much more suitable for hand-held operation.Improvements in power supply and mechanical structure, it can run on USB or a single cell 3.7V Li-ion battery.Can be connected with computer for data transmission.It has improvements in firmware, too.&nbsp;Its trigger can work reliably under 10us and 20us timebase settings.With Auto/Normal/Single trigger modes, easy to capture the moment waveform.Available rising or falling edge trigger.Observable previous trigger waveform (negative delay).Can freeze at any time waveform display (HOLD function).Waveform storage function: will not lose the waveform after power off.Short-circuit and open-circuit detection: can help the user find out the soldering error.TFT controller recognition function.All SMD parts has been soldered and the MCU has been programmed.Comes with a transparent case, can protect the oscilloscope well.Note:The Oscilloscope will sent in a finished product, you just need to assemble the Transparant Shell by yourself.&nbsp;Specifications:Type: DIY Kit / Finished Product+DIY Shell Kit (Optional)Material: PCB&nbsp;Number of Channel: 1Analog Bandwidth: 0-200KHzSensitivity Range: 10mV/Div - 5V/DivSensitivity Error: <5%Maximum Input Voltage: 50Vpk (1X probe)Input Impedance: 1M ohms/20pFResolution: 12 bitsRecord Length: 1024 pointsCoupling Modes: DC / AC / GND&nbsp;&nbsp;Maximum Real-time Sampling Rate: 1MSa/sTime Base Range: 10us/Div - 500s/Div&nbsp;Trigger Modes: Auto, Normal, and SingleTrigger Position: Center of BufferDisplay: 2.4" Color TFT LCD with 320*240 ResolutionSupply Voltage: DC 3.5V - 5VCurrent Consumption: ~120mA @ 5VMain Board Size: Approx. 70 * 53mm / 2.76 * 2.1inAnalog Board Size: Approx. 81 * 70mm / 3.19 * 2.76inPackage Size: Approx. 11 * 9 * 2.3cm / 4.33 * 3.54 * 0.91inPackage Weight: Approx. 124g / 4.37ozPackage List:1 * Oscilloscope1 * Transparent Case DIY Kit1 * User Manual (English)
