Key Features and Benefits:

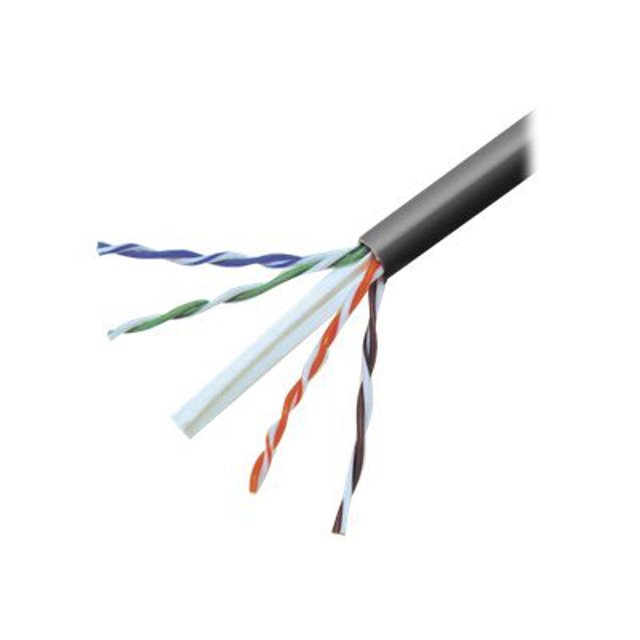

- CAT 6 High Performance UTP Solid Cable
- Standards Compliance: ISO/IEC 11801; TIA/EIA-568-B.2-1
- Conductor Size: 24AWG x 4pairs
- Conductor Construction: Solid Bare Copper
- Insulation Material: FRPE
- Jacket Diameter: 6.80������0.20mm
- Jacket Material: PVC
- Rating: 75������C, 300V
- Conductor Resistance: 93.8O/km/20������C max
- Mutual Capacitance: 56pF/m max
- Dielectric Strength: AC 1.5kV/min
- Spark Test: 2.5kV
- Flame Retardant Test: CMR
- Characteristic Impedence: 100������15O @ 1 ~ 550MHz
- Structural Return Loss: 8.6dB min at 550MHz
- Propagation Delay: 536nS/100m max @ 550MHz
- Category 6 performance rated for any 10Base-T, 100Base-T, and 1000Base-T Network
- Separator design provides extra cross-talk immunity
- White conductor has color band for easy pair identification
