Ccdes Frequency Converter, Radio Frequency Mixer,AD831 500MHz Bandwidth High Linearity Low Distortion Active RF Mixer Module

<ul><li> without the need for a high power LO drive</li><li>There is no corresponding shielding and isolation problems, compared with the passive mixer to improve the performance of the system, therefore</li></ul>

Brand

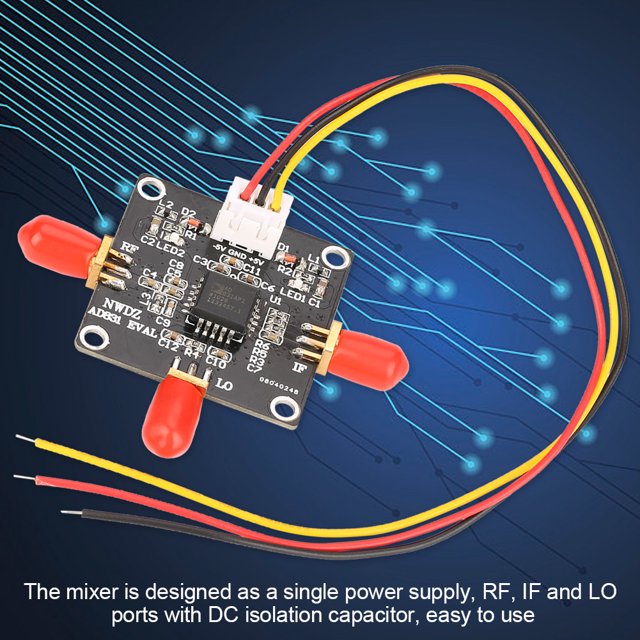

The AD831 is a low distortion, wide dynamic range, single chip mixer, suitable for HF and VHF Receiver RF-IF frequency, second mixer in base station, DC-baseband conversion, quadrature modulation and demodulation, and imaging, frequency shift detection and other applications. &nbsp; Features: <ul> <li> The AD831 has provide +24 dBm third-order intermodulation intercept point, realization of -10 dBm LO power, without the need for a high power LO drive. </li> <li> There is no corresponding shielding and isolation problems, therefore, compared with the passive mixer to improve the performance of the system, reduce the system cost. </li> <li> The mixer is designed as a single power supply, RF, IF and LO port with DC isolation capacitor, easy to use. </li> <li> The operating frequency of the RF and LO inputs can be as high as 500MHz. </li> <li> IF output is single ended voltage output. </li> <li> With 250 MHz output bandwidth. </li> <li> A single resistor connected between pins OUT and FB is used to set the gain. </li> <li> The amplifier has low DC offset characteristics, so it can be used in DC-baseband frequency conversion and quadrature amplitude demodulation. </li> <li> When the mixer's output amplifier and the source impedance, the SSB noise figure of the mixer is 10.3dB at 70MHz. </li> <li> Different from the passive mixer, there is no insertion loss, no need external duplex device, and no need passive termination for AD831. </li> </ul> &nbsp; Specifications: Model: AD831 RF Input: 0.1-500MHz RF Input: +10dBm (1dB compression point) Local Oscillator Input: 0.1-500MHz Local Oscillator Input: -10dBm IF Output: 0.1-200MHz Power Supply Voltage:±5V Dual power supply Size: Approx. 7*5.3cm/2.8*2.1inch Weight: Approx. 12g / 0.4oz &nbsp; Package List: 1 x Active Mixer Module
