Fluke Networks CableIQ Advanced IT Kit - Network tester kit

Key Features and Benefits:

• Bandwidth qualification---When you deploy Voice over IP (VoIP) or Gigabit Ethernet, you want to make sure that the existing cabling will support the bandwidth requirements of your new equipment. Your cabling was certified, but moves adds and changes have rendered many links incapable of running desired speeds. Tests if your existing network cabling has the bandwidth to support voice, 10/100, VoIP or Gigabit Ethernet.
• Cable Troubleshooting---Shows why existing network cabling cannot support the network's bandwidth requirement (e.g. crosstalk at 11 meters). Plug into any cable, patch panel, or wall jack and see both the cable details (length/wiremap) and far-end device details (speed/duplex settings) at once. A series of both cable and network test functions help you isolate connectivity problems. For instance, if Discover mode shows duplex settings are matched but the problem persists, run Autotest to see if the cabling can support the required bandwidth. If a link is not qualified, CableIQ provides detailed information on the nature and location of cabling performance faults such as crosstalk or large impedance changes. With CableIQ your techs can close trouble tickets faster by cutting cable troubleshooting time in half.
• Infrastructure Discovery---CableIQ's Discover mode shows you exactly what's at the end of any network cable and displays device configuration (speed/duplex/pairing). Determine where installed cables are routed, all from one location. Attach remote ID's in different locations, then perform multiple cable tests from the distribution center or wiring closet. CableIQ provides the wiremap, pair lengths, distance to fault, and remote ID number of each tested cabling link. At the switch, test each cable one at a time. You can quickly see whether the cable is open at the far end, or is connected to a PC. Free up 10% or more of your switch ports. Identifies unused switch ports that can be reallocated.
• Intelligent wiremap---Intelligent wiremap tests for length, shorts, split pairs, or opens and displays with an intuitive graphical interface where a fault is located. Graphically maps wiring configuration and shows distance to faults.
• IntelliTone Technology---Locate cables and wires with superior accuracy. CableIQ supports IntelliTone digital toning by: (1) Finding cables easier and tracing with better accuracy than any other tool on the market; (2) Toning and tracing safely on a live network; (3) Providing two digital tones and four analog tones; (4) Featuring IntelliTone cable mapping; after tracing, use the IntelliTone Pro Probe 200 to verify wiremap.
• Easy-to-use---Empower frontline techs with an easy-to-use tool. Intuitive user interface and graphical display guides user with little or no training required: (1) Rotary knob makes learning easy and operation simple you always know what test mode is selected; (2) Portable, lightweight, rugged ergonomic design for easy field use; (3) Four AA batteries - Long lasting battery life for several weeks of testing; (4) Remote adapter doubles as a protective endcap. Customer quote: "I handed CableIQ to our level III techs, they turned the unit on and began testing within two minutes of reviewing the various available selections."--Telecommunications Analyst
• Tests all copper cabling media: twisted-pair, coax, and audio cabling

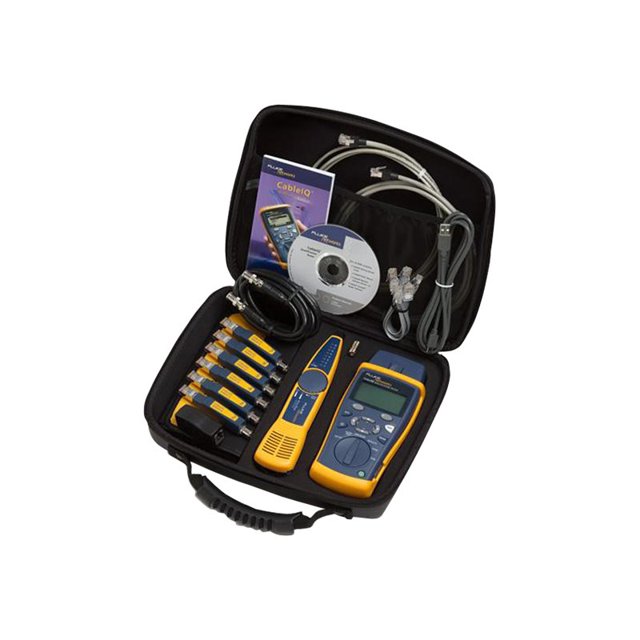

What's Included:

• CableIQ Qualification Tester with remote adapter
• CableIQ Reporter Software CD
• IntelliTone 200 Digital Probe
• Remote IDs #2-7
• (2) RJ45-RJ45 patch cord
• USB cable
• Coax 'F' push-on adapter
• 75-ohm Coax patch cord
• RJ45/11 universal coupler
• RJ11-RJ11 patch cord
• User Manual CD-ROM
• Quick start guide
• (4) AA batteries
• Test accessory soft pouch
• Hard carrying case
