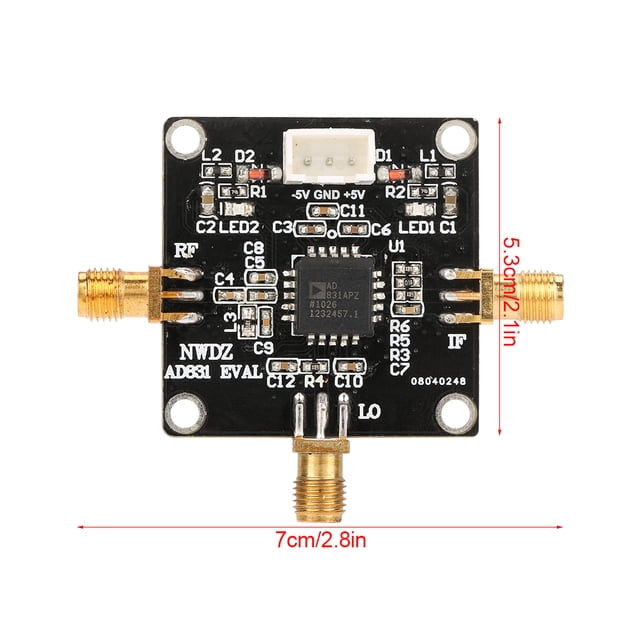

Fosa AD831 500MHz Bandwidth High Linearity Low Distortion Active RF Mixer Module,Active Mixer Module, Frequency Converter

<ul><li>A single resistor connected between pins OUT and FB is used to set the gain.</li><li>The amplifier has low DC offset characteristics, so it can be used in DC-baseband frequency conversion and quadrature amplitude demodulation.</li><li>When the mixer's output amplifier and the source impedance, the SSB noise figure of the mixer is 10.3dB at 70MHz.</li><li>Different from the passive mixer, there is no insertion loss, no need external duplex device, and no need passive termination for AD831.</li></ul>

Brand

The AD831 is a low distortion, wide dynamic range, single chip mixer, suitable for HF and VHF Receiver RF-IF frequency, second mixer in base station, DC-baseband conversion, quadrature modulation and demodulation, and imaging, frequency shift detection and other applications.&nbsp;Features:<ul><li>The AD831 has provide +24 dBm third-order intermodulation intercept point, realization of -10 dBm LO power, without the need for a high power LO drive.</li><li>There is no corresponding shielding and isolation problems, therefore, compared with the passive mixer to improve the performance of the system, reduce the system cost.</li><li>The mixer is designed as a single power supply, RF, IF and LO port with DC isolation capacitor, easy to use.</li><li>The operating frequency of the RF and LO inputs can be as high as 500MHz.</li><li>IF output is single ended voltage output.</li><li>With 250 MHz output bandwidth.</li><li>A single resistor connected between pins OUT and FB is used to set the gain.</li><li>The amplifier has low DC offset characteristics, so it can be used in DC-baseband frequency conversion and quadrature amplitude demodulation.</li><li>When the mixer's output amplifier and the source impedance, the SSB noise figure of the mixer is 10.3dB at 70MHz.</li><li>Different from the passive mixer, there is no insertion loss, no need external duplex device, and no need passive termination for AD831. </li></ul>&nbsp;Specifications:Model: AD831RF Input: 0.1-500MHzRF Input: +10dBm (1dB compression point)Local Oscillator Input: 0.1-500MHzLocal Oscillator Input: -10dBmIF Output: 0.1-200MHzPower Supply Voltage:±5V Dual power supplySize: Approx. 7*5.3cm/2.8*2.1inchWeight: Approx. 12g / 0.4oz&nbsp;Package List:1 x Active Mixer Module
