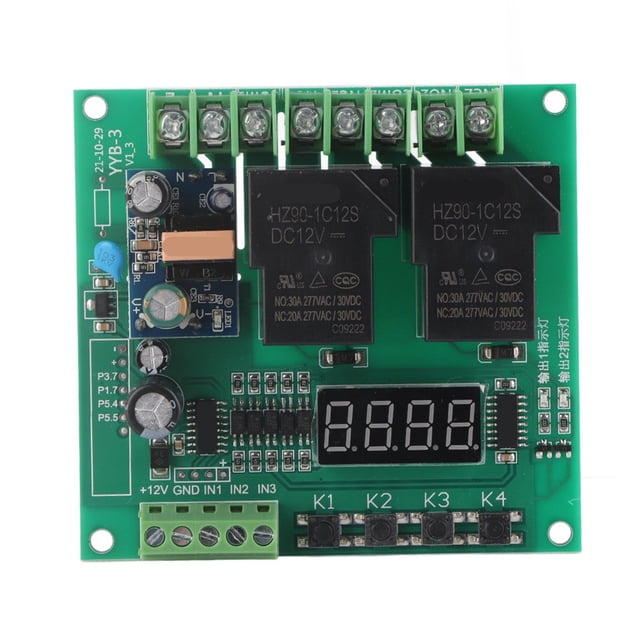

Lishi Motor Control Board with Two Relay - 220V, Forward/Reverse, Delay Timing Cycle Module

<li>Welcome to our shop! This is a brand new and high-quality motor control board. It has 6 kinds of commonly used functions to meet the needs of various applications. With this board, you can easily control 2-way solenoid valves, pumps, motors, lights, and other devices. The output power can control up to 30A DC or AC load. The time range is adjustable from 0.1 seconds to 999 minutes.</li> <li>Specification:</li> <li>Input voltage: AC 110V ~ 250V</li> <li>Time range: 0.1 seconds to 999 minutes</li> <li>Weight: Approx. 110g/3.9oz</li> <li>Wiring port Description:</li> <li>1. 220V AC: Input power</li> <li>2. IN1: Signal input 1 (negative trigger)</li> <li>3. IN2: Signal input terminal 2 (negative trigger)</li> <li>4. IN3: Signal input 3 (negative trigger)</li> <li>5. NO: Relay normally open interface, relay pulls before connection with COM</li> <li>6. COM: Relay common interface</li> <li>7. NC: Relay normally closed interface, relay connects with COM before pulling</li> <li>Function list:</li> <li>P 1: Signal 1 pulls relay 1 for time A and automatically stops; Signal 2 pulls relay 2 for time B and automatically stops; Signal 3 is an emergency stop reset signal.</li> <li>P 2: Signal 1 pulls relay 1 for time A and automatically stops; Relay 2 starts after a delay of time B from the signal and automatically stops after time C (time unit must be consistent).</li> <li>P 3: After power on, relay 1 pulls up for time A and releases, waits for time C; relay 2 pulls for time B and releases, waits for time C; relay 1 and 2 operate in an endless cycle.</li> <li>P 4: Signal 1 pulls relay 1; Signal 2 (limit) stops relay 1 and starts counting for time A; Signal 3 (limit) stops relay 2 and starts timing for time B; infinite loop.</li> <li>P 5: Signal 1 pulls relay 1; Signal 2 (limit) stops relay 1 and starts counting for time A; Signal 3 (limit) stops relay 2; Signal 1 again.</li> <li>P 6: Signal 1 pulls relay 1; Signal 2 (limit) stops relay 1; Signal 1 pulls relay 2; Signal 3 (limit) stops relay 2.</li> <li>Key Settings Description:</li> <li>Press K1 for the first time, the screen shows P-1, adjust with K2 and K3.</li> <li>Press K1 for the second time, the screen shows A001, adjust with K2 and K3 for the first time A, adjust the decimal point (time unit) with K4.</li> <li>Press K1 for the third time, the screen shows B001, adjust with K2 and K3 for the second time B, adjust the decimal point (time unit) with K4.</li> <li>Press K1 for the fourth time, the screen shows C001, adjust with K2 and K3 for the third time C, adjust the decimal point (time unit) with K4.</li> <li>Press K1 for the fifth time, the display shows "----" indicating the standby state.</li> <li>Package list:</li> <li>1 x Motor Control Board</li> <li>100% Satisfaction: Our customers are our top priority. If you find any product problems after receiving the goods, such as damage and incorrect quantity of goods, please contact the seller immediately. We try our best to provide you with satisfactory after-sales service.</li>
