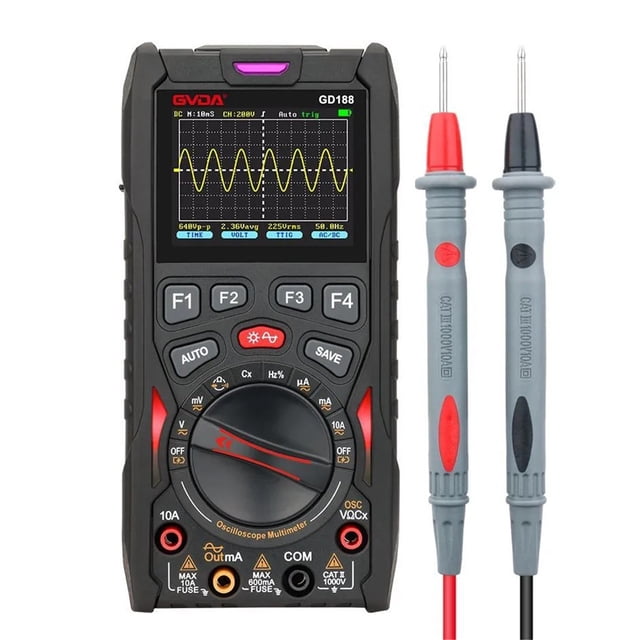

TFixol GVDA GD188 3-in-1 Digital Oscilloscope, Multimeter, and Signal Generator with 12MHz Bandwidth, 6000 Counts, and AC/DC Current Measurement [GD188 Set]

<ul><li>12.15 minutes no operation auto-sleep function.</li><li>3.Signal source outputs three types of waveform, such as sine, triangle and square waveform.</li><li>11.Overload protection 750mA; 10A double fuse,double protection instrument.</li><li>13.2.4 inch color screen display, clear display.</li><li>1.50Msps high-speed sampling chip 12MHz analog bandwidth 6000 counts digital multimeter.</li></ul>

Brand

Assembled Product Dimensions (L x W x H)

Assembled Product Weight

Model

Description:
1.50Msps high-speed sampling chip 12MHz analog bandwidth 6000 counts digital multimeter.
2.One key to see the wave of voltage gear, three waveform scanning modes such as automatic/conventional/single.
3.Signal source outputs three types of waveform, such as sine, triangle and square waveform.
4.Signal source output range, frequency, duty cycle, fixed point, adjustable.
5.Configured with replaceable 18650 lithium batteries, more environmentally friendly.
6.Data waveform hold function during measurement, 100 sets of data and 10 waveform can be stored.
7.Waveform range up to 200V/grid, The highest up to 1600Vpp measurement. 8.Relative value measurement, effectively eliminating lead resistance, distributed capacitance or interference signals.
9.Multimeter functions include voltage,current,resistance,capacitance, frequency, duty cycle, diode/on/off testing.
10.Automatic/manual range switching, displaying real-time data and stored data on the same screen.
11.Overload protection 750mA; 10A double fuse,double protection instrument.
12.15 minutes no operation auto-sleep function.
13.2.4 inch color screen display, clear display.
14.Panel calibration, memory calibration factor without potentiometer adjustment, higher reliability.

Product Details:
Display:240*320 Color Screen
Observation area:49.0*36.7mm
Backlight:Ever Bright
Input resistance: 500mV/div~200V/div about 5M&Omega;，50mV/div~200mV/div about 1M&Omega;
Battery:One 18650 lithium battery(1500mAH)
Automatic sleep:15 minutes or disabled
Static operating current:Multimeter about 80mA,Oscilloscope about 300mA
Shutdown:＜10uA
Duration of continuous use: ＞8 小时
Save Capability:100 records of DMM data, 10 records of OSC waveforms
Usage environment: 0&deg;C~+40&deg;C;&lt;75%RH
Storage conditions: -10&deg;C ~ +60&deg;C ; &lt;90%RH
Product size:83*160*32mm
Product weight:250g
Charging:5V/1A,Type-C

Oscilloscope parameters:
Simulation bandwidth: DC~8MHz（50mV/div~200mV/div）,
DC~12MHz（500mV/div~20V/div）20V/div The above is for reference only
Maximum equivalent sampling rate: 50Msps
Number of channels: 1
Input resistance: 5M&Omega;
Vertical sensitivity range:500mV~200V/div
Time base range:200ns~10s/div
Vertical range accuracy: &plusmn;(5%+0.2div)
Time base accuracy:&plusmn;(0.01%+0.1div)
Scan mode:auto/normal/single
Trigger edge selection:Rising/falling edge
Automatic settings:Automatic setting of time base and vertical range
Automatic measurement function: Vp-p, Vavg, Vrms, Hz

Signal Source parameters:
Sine wave frequency: 100Hz~100kHz (fixed-point output in 1-2-5 steps)
Square wave frequency: 100Hz~20kHz (fixed-point output in 1-2-5 steps)
Triangular wave frequency: 100Hz~50kHz (fixed-point output in 1-2-5 step mode)
Output amplitude:3Vpp、2.5Vpp、2Vpp、1.5Vpp、1Vpp、0.5Vpp、0.4Vpp、0.3Vpp、0.2Vpp、0.1Vpp、0Vpp

Multimeter parameters:
DC voltage: 60.00mV/600.0mV/600mV/6V/60V/600V/1000V
AC voltage: 60.00mV/600.0mV/600mV/6V/60V/600V/750V
DC current: 600.0uA/6000uA/60mA/600mA/6A/10A
AC current: 600uA/6000uA/60mA/600mA/6A/10A
Resistance: 600&Omega;/6k&Omega;/60k&Omega;/600k&Omega;/6M&Omega;/60M&Omega;
Capacitance:99.99nF/999.9nF/9.99&mu;F/99.99&mu;F/999.9&mu;F/9.999mF/99.99mF
Frequency: 1.000Hz~20.00MHz
Diode/on/off test: Open circuit voltage about 2.8V; judgment resistance about 50&Omega;
Fuse:750mA/250V ,10A/250V
Operation mode: AUTO/manual

Package contents:
1x Oscilloscope
1x test pen
1x cloth bag
1x manual
